SMARTmark® UV Laser Marking Machine
Models: 5W
Clean, High-Contrast UV Laser Marking, Without the Damage
A wide range of industries benefit from versatile UV laser technology. It delivers smooth, precise marks required of medical device manufacturers. In industries like electronics and automotive, UV lasers allow companies to mark small, delicate components, including circuit boards and silicon wafers, with less waste.
SMARTmark UV Laser Marking Applications
Designed for marking flexibility, the SMARTmark UV Laser Marker is engineered for:
- Circuit boards
- Silicon wafers
- Delicate components
- Automotive part marking
- Electronics part marking
- Medical Device Part Marking
SMARTmark UV Laser Marking Materials
The SMARTmark UV Laser marker is engineered to work best on the following materials:
- Plastic
- Glass

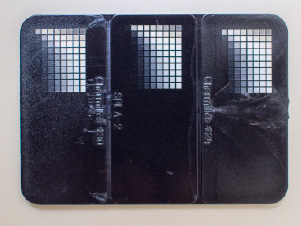

SAMPLE MARK GALLERY
MECCO is known for the high quality of the marks we produce, and these samples from SMARTmark® UV Lasers showcase some of the common applications that highlight its capabilities. UV lasers can be used for delivering high quality traceability marks without damaging your product.
Watch SMARTmark UV Laser Marking videos on YouTube
REQUEST SAMPLE MARKING
Don’t see what you’re looking for? To help you find the right marking equipment for your project, MECCO offers free sample marking so that you can see what the mark would look like on your material.
Models and UV Laser Marking Machine Price
Contact our team today to help you discover the best solution based on your specific marking goals and provide you with a quote.
SMARTmark UV Laser System Features
- Mark materials that are heat sensitive
- Real-time visible live pointer for previewing mark
- Small 19" rack mount footprint makes it easy to integrate with other equipment and existing assembly lines
- No consumables and minimal maintenance help reduce operating costs
- Mount laser in any orientation
- Integrated safety shutter
- 2-Year equipment warranty -- parts and labor
- Laser Customer Success Plans available for preventative maintenance
ADVANCED FEATURES FOR INTEGRATORS:
- LEC embedded controller allows for stand-alone mode operation without a PC
- Dual E-Stop channels
- Dual door interlock channels
- Enhanced diagnostics with LCD Display to notify operator/PLC of system status
- RS-232 and Ethernet TCP/IP Communication
- Remote and COM Interface for dynamic and external control of the laser
- EtherNet/IP & Modbus or Profibus Communication
UV LASER MARKING SYSTEM TECHNICAL SPECIFICATIONS
|
Category: |
Spec: |
|
Laser Type |
UV (DPSS) |
|
Output Power |
5W |
|
Power Requirements |
110VAC, 5A |
|
Wavelength |
355nm +/-10nm |
|
Beam Quality (M2) |
<1.2 |
|
Operation Mode |
Pulsed |
|
Pulse Rep Rate |
20 - 150kHz |
|
Cooling |
Controller and Optical Head are Air Cooled |
|
Scanning Method |
XY galvanometer |
|
Rail Weight |
41 lbs |
|
|
W 27.56” x H 7.36” x D 7.49” |
|
Cable Length |
9.8' |
|
Controller Weight |
28 lbs |
|
Controller Dimensions |
W 19.49” x H 5.17” x D 18.99” |
|
Accuracy |
3.5 μm |
|
Max Line Speed |
3,000 mm/sec |
|
Controls |
LEC Industrial computer based controller |
|
Communications |
Ethernet TCP/IP, EtherNet/IP™, PROFINET, Modbus TCP, RS232 |
|
Warranty |
2 Years |
|
Documentation |
USB Flashdrive with Operator’s Manual & Integration Guide |
LENS CONFIGURATIONS
Follow MECCO’s lens configuration guidelines for marking field and focal length.
|
Lens |
Marking Field |
Working Distance |
|
160mm |
85mm x 85mm (3.3” x 3.3”) |
213.4mm (8.40”) |
|
254mm |
175mm x 175mm (6.9” x 6.9”) |
314.4mm (12.36”) |
| 360mm | 250mm x 250mm (9.8” x 9.8”) | 418.1mm (16.46”) |
| 420mm | 300mm x 300mm (11.8” x 11.8”) | 483.1mm (19.02”) |
Laser Marking Software
We also offer custom Graphical User Interfaces to help ensure that ease-of-use, automation, database integration and vision inspection meet the needs of your project.
SMARTMARK UV PRODUCT RESOURCES
- Software Files
- Manuals
- Integration Guides
- Engineering Drawings
- Troubleshooting Videos
- Software Training Videos
GO TO DOWNLOADS
Laser Product Options
-
OEM Models
An OEM (or U-Model) is the core product for making traceability marks on your parts. It consists of the laser rail with controller and is the choice for machine builders to integrate marking into a larger turnkey solution. -
Enclosures & Workstations
Lasers can be added to standalone, configurable enclosures that are designed to meet CDRH Class 1 safety regulations and available in a range of sizes to meet the requirements of your parts. Learn more about the LightWriterTM and LightWriter PRO Connect series. -
Turnkey Solutions
SMARTmark® Laser Marking Systems are configurable to your part and process automation requirements. With our Turnkey Laser Solutions, we can design and manufacture an enclosure to meet your needs in part handling, vision, software and database integration.
